Microscope slides with printed hydrophobic coating with wells to contain a liquid sample. Available in epoxy or PTFE coating.
For Laboratory and Industry, select from our extensive range of design patterns or we can create something for your exact needs.
Available slide designs are suitable for IFA Histology Cytology Immunology etc. coated in hydrophobic or super hydrophobic inks. Tasman Scientific slides are manufactured with premium materials with high resistance to hard laboratory chemicals.

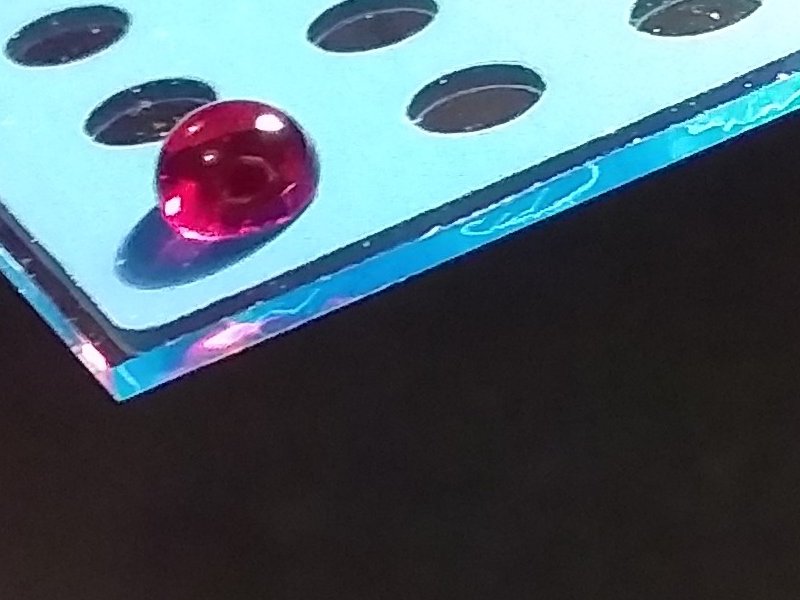

Teflon™ PTFE superhydrophobic coating
Premium
- Contact angles to water in excess of 140 deg.
- High chemical and solvent resistance.
- Minimise cross contamination and increases microlitre volume.
- Standard colours Blue or white, others are available on request.

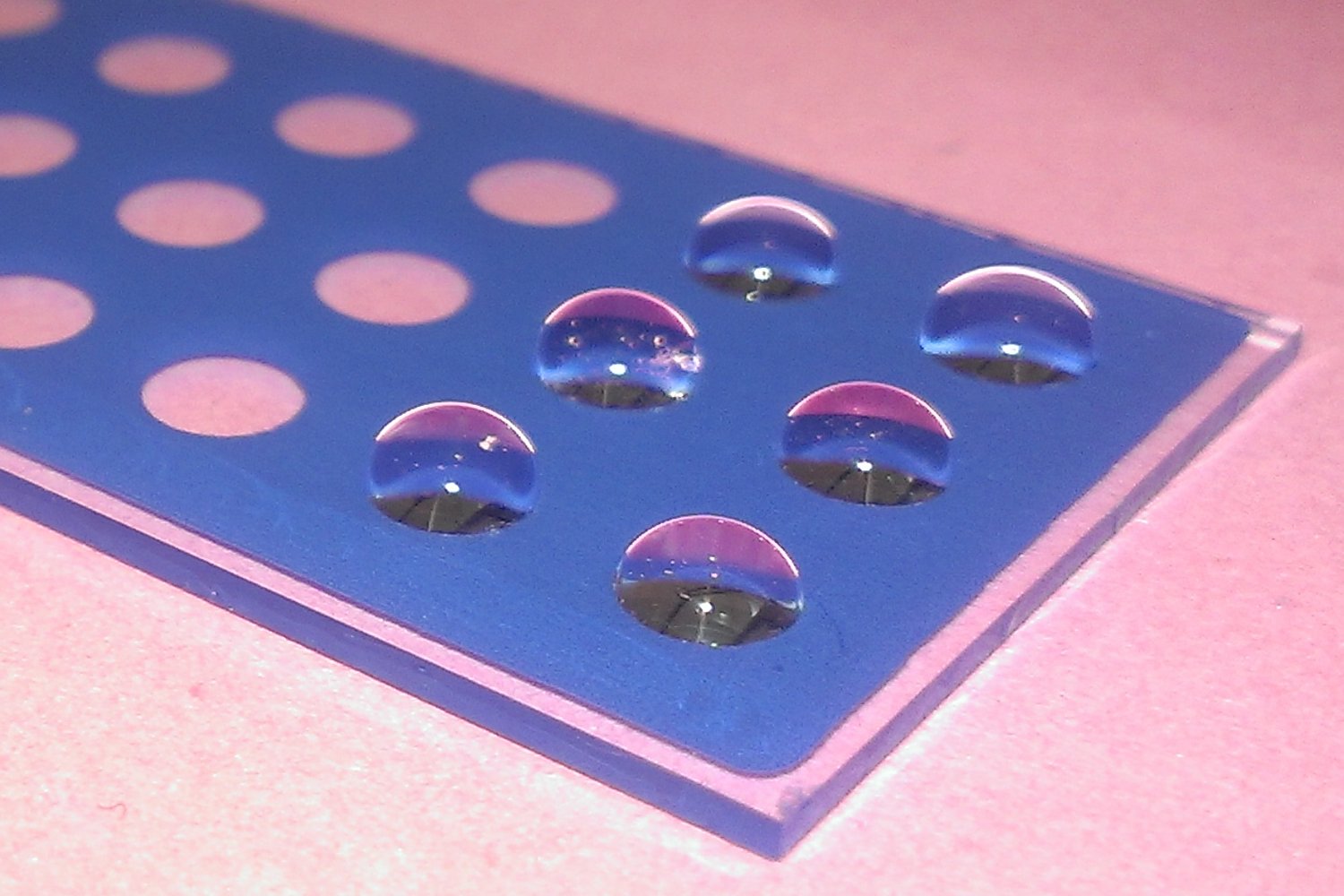

Epoxy hydrophobic coating
Economical
- Contact angles to water to 40 deg.
- Autoclavable with high resistance to laboratory solvents including Acetone.
Glass materials, sizes and adhesive types.
Glass materials
Standard slides are MENZEL-GLASER 26 x 76 mm 1.0 mm thick
(ISO Norm 8037/I) Frosted end extra white glass.
Others available are:
- Plain glass ie. no frosting.
- 1" x 3" (25.4 x 76.2mm)
- 2" x 3" (50.8 x 76.2mm) plates.
Adhesive glass
Two types of adhesive glass are available.
Trajan
Specialised coating that produces the positively charged surface required for histology, cytology and microbiology applications.
Polysine™
Proprietary Thermo Scientific coating from Menzel.
Derived from the chemistry for Poly-L-Lysine coating,
attracts frozen and paraffin embedded tissue sections.
Note: Only available in 1" x 3" glass size with frosted tab.

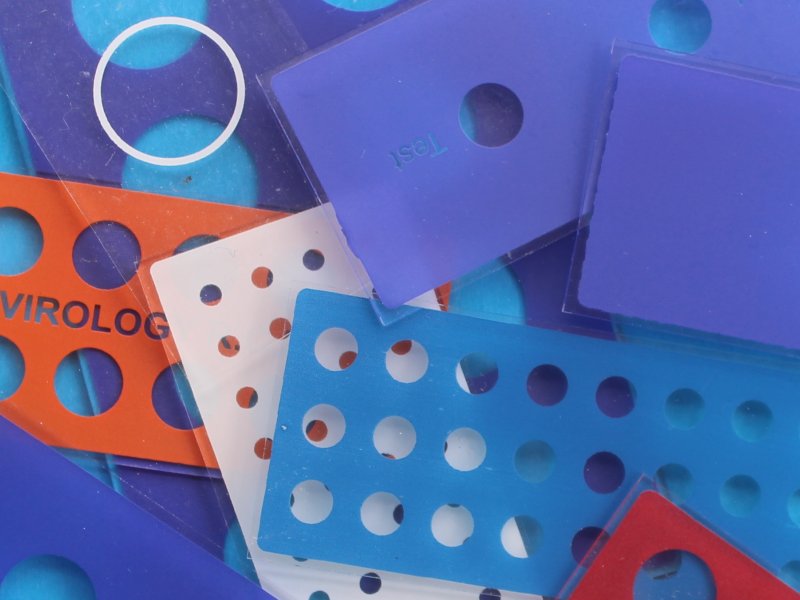

Available designs.
Slides are processed to order with fresh stock with MOQ of 10 boxes of 50pcs. (500 slides) Samples are available on request.
Teflon™ or Epoxy. Size 26x76mm
Tap thumbnail images for details.
| cat. | MIC017 |
|---|---|
| wells | 1 |
| dia | 11mm |
Printed plate 50x76mm (2"x3")
 |
Agglutination plate for immunological reaction testing. Teflon or Epoxy coated. |
| cat: MICa065 | |
| wells: 8x13mm |
Coating colours
Epoxy colours. |
 |
 |
 |
 |
 |
 |
 |
|
Other colours available on request. |
Our advantage:
- Local Australian manufacture.
- Low cost setup.
- Fast! 2-3 weeks, start to delivered slides.
- Low MOQ - 500pcs.
- Hydrophobic or Superhydrophobic coating.
- Ink selection colour range options.
- Glass material size and frosting options.
- High resolution for fine detail.
